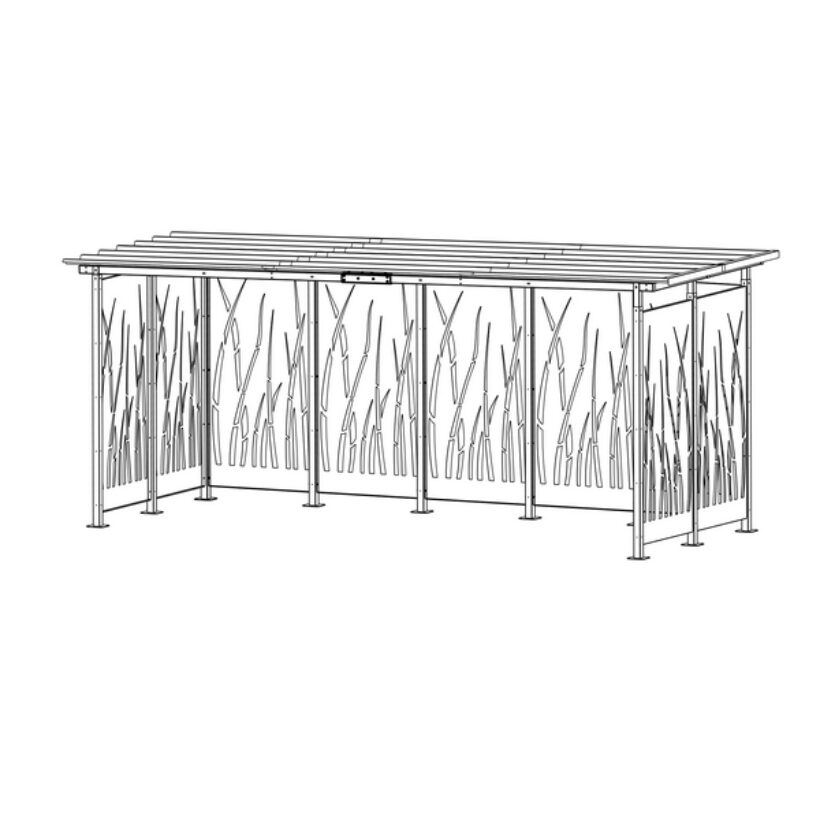

5x2m Open Shelter – Reeds Design
Réf : M110VRO
This shelter combines aesthetics and functionality, featuring an elegant design that blends harmoniously into any environment.
It can accommodate up to 16 bicycles (for example, 2 × B134V + 1 × B133V4) or motorcycles, scooters, e-scooters, etc.
Rainwater drainage: compatible with a standard gutter system, with mounting points designed for corrugated/ribbed steel sheets (NOT supplied).
Supplied with a solar panel and spotlight (motion sensor).
Posts made of 60 × 60 mm steel tubing and roof beams made of 70 × 40 mm steel tubing, galvanized + black sand-textured polyester powder coating – optimum anti-corrosion protection.

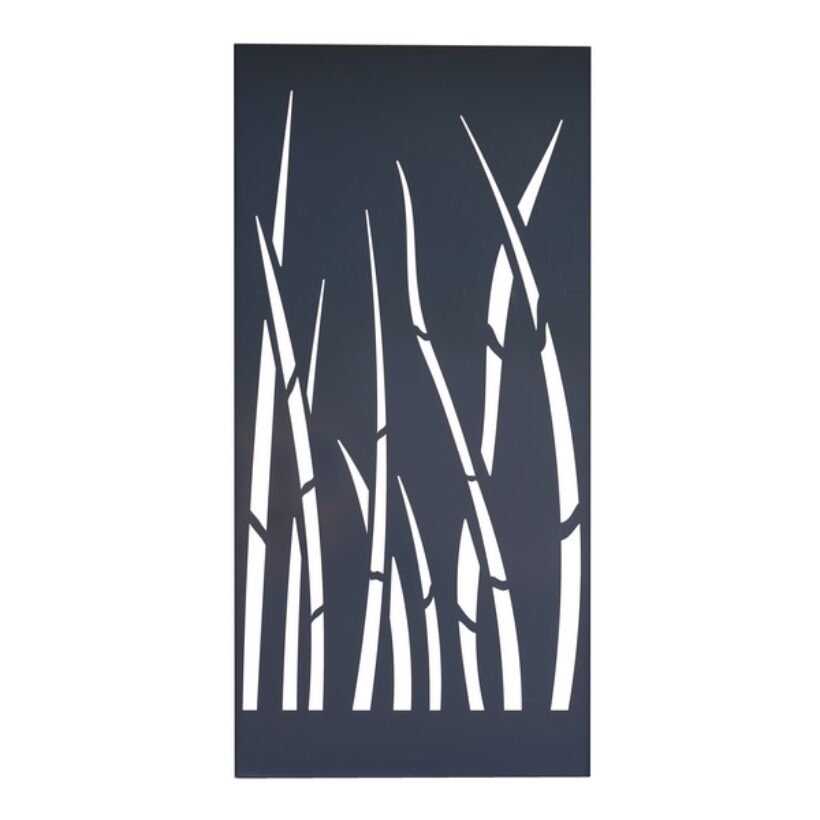

Slatted cladding made of 2 mm thick electro-galvanized steel sheet with anthracite grey (RAL 7016) polyester powder coating.
Mounting plates : 4 holes Ø 11 mm
Installation : 4 hours with 2 people
Usable Dimensions : 200 x 494 cm x min. height 210 max height 223 cm
Overall Dimensions : 215 x 560 cm x min. height 221 max height 236 cm
